| ชื่อแบรนด์: | SSL |
| หมายเลขรุ่น: | SSL60 |
| ขั้นต่ำ: | 1 |
| เวลาการส่งมอบ: | 20-55 วัน |
| เงื่อนไขการชำระเงิน: | ที/ที |

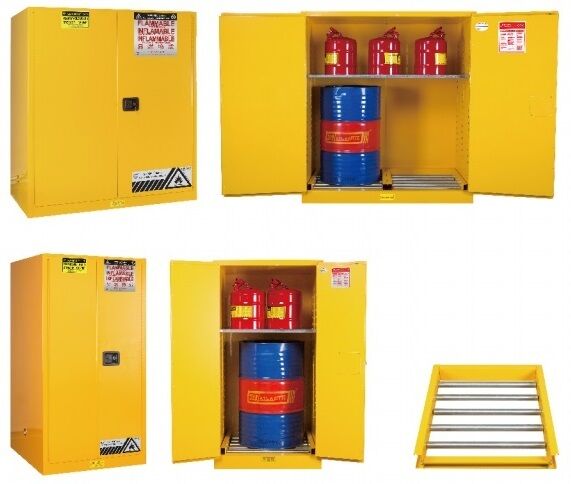

The SUPER Drum Storage Cabinet is a professional safety storage solution engineered for flammable liquids, motor oils, and other hazardous chemicals. Designed to meet global regulatory requirements, it ensures secure containment, minimizes accident risks, and improves operational safety across industrial environments.
Complying with OSHA, NFPA, and EU CE / EN standards, this cabinet is ideal for laboratories, manufacturing facilities, and warehouse storage applications requiring certified hazardous material containment.
Fireproof construction to resist external ignition sources
Explosion-proof design to mitigate internal vapor risks
Leak-proof structure to prevent chemical spills
Static-dissipative grounding to reduce ignition caused by static electricity
These integrated protections provide reliable, long-term safety for hazardous chemical storage.
Vertical drum storage for 1, 2, 3, or 4 drums
Custom non-standard sizes available upon request
Compatible with drum supports and Haz-Drum roller systems
| Category | Specific Parameters |
|---|---|
| Compliance Standards | OSHA 29 CFR 1910.106, NFPA CODE 30, EU CE / EN 14470 |
| Applicable Substances | Flammable liquids, motor oils, hazardous chemicals |
| Cabinet Models | Vertical 1-drum / 2-drum / 3-drum / 4-drum |
| Standard Model | SSL60 |
| Capacity | 227 L (60 gallons) |
| External Dimensions | 1650 × 860 × 860 mm |
| Shelf Material | Galvanized steel |
| Shelf Load Capacity | Max. 159 kg per shelf |
| Shelf Adjustment | ±6 cm |
| Protection Functions | Fireproof, explosion-proof, leak-proof, static dissipation |
| Ventilation | Unobstructed side vents; compatible with explosion-proof ventilation |
| Leveling System | 4 adjustable base feet |
| Environmental Limits | <55 °C, <80% RH; keep ≥60 cm from fire/electrical sources |
The cabinet’s galvanized adjustable shelves support heavy loads while accommodating containers of different sizes. Drum supports come standard, with optional rollers to simplify loading and unloading. Four adjustable feet ensure cabinet stability on uneven floors, reducing tipping and leakage risks.
Side ventilation ports prevent vapor accumulation and allow connection to explosion-proof ventilation systems. This ensures safe air circulation and compliance with hazardous storage requirements.
In the event of lost keys or damaged lock cylinders, users can contact SUPER after-sales service with the product model and proof of purchase for emergency unlocking or lock replacement—avoiding unsafe forced access.
SUPER combines regulatory compliance, advanced protection, and flexible customization into one reliable drum storage solution. The Drum Storage Cabinet not only meets global safety standards but also improves storage efficiency and operational confidence.
