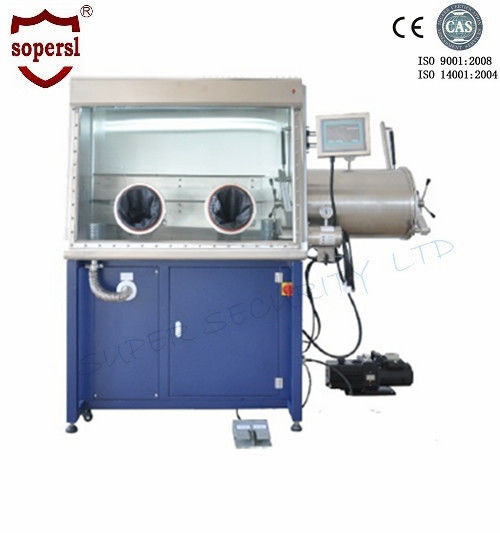

Large Glove Box with Gas Purification System and Digital Control

Large Glove Box with Gas Purification System and Digital Control
Large Glove Box with Gas Purification System and Digital Control
Large Glove Box with Gas Purification System and Digital Control
รายละเอียดสินค้า:
Place of Origin: CHINA
ชื่อแบรนด์: SOPERSL
ได้รับการรับรอง: CE.SGS.ISO
Model Number: GBL-1S
การชำระเงิน:
Minimum Order Quantity: 3
ราคา: USD300-USD10000
Packaging Details: CRATE PACKAGE
Delivery Time: 5-10 WORKING DAYS FOR LCL
Payment Terms: D/P, Western Union
Supply Ability: 3000PCS/MONTH
ติดต่อ
รายละเอียดสินค้า
Usage: Universal Testing Machine MATERIAL: SS304
Glove box chamber: Customize COLOR: Grey
POWER: ELECTRONIC Name: SUS large glove box
ไฮไลต์:

Vacuum Glove Box

,

sterile glove box

Large Glove Box with Gas Purification System and Digital Control



Application:



Box and gas purification system, form a sealed environment, filled with Inert gas or nitrogen to the cabinets, and circulation to remove internal active substances, allowing the system always maintain high cleanliness and high purity inert gas environment (water, oxygen are equipment a 1 ppm below)

Mainly for O2, H2O clearing





Advantages:

  • Anhydrous, anaerobic and clean, ultra-clean work environment
  • The R&D and production of batteries and battery materials (lithium-ion battery, battery, solar cell, the lithium iron phosphate, etc.)
  • The R&D and manufacturing of special lamps: HID lamps, metal halide, ceramic metal halide.
  • Welding: resistance welding, TIG welding, laser welding, plasma welding, brazing.
  • OLED R&D and production.
  • The development and production of medical supplies.
  • Development and production of the super capacitor.
  • Fine chemicals, nuclear industry.
  • The new energy and new materials development and production.

Specification:



Model Cabinet Size (mm) The total size of equipment (mm) Configuration Description
2GBS ≈L1220*W760*H900 ≈L1935*W790*H1800 Monomer type. Material:SUS304 stainless steel





Configuration and

Quantity

Technical parameters Remark
1 standard airlock DN385×600mm

Located in the cabinet right side,The airlock with sliding tray

Exterior doors equipped with door booster device.

Material: SUS304 stainless steel, aluminum alloy.

1 tool airlock DN150×300mm

Located in the cabinet right side,

Material: SUS304 stainless steel.

1 cabinet rack H = 900mm

Carbon steel,with casters (with support feet),

convenient mobile glovebox,fine-tune the level

1 transparent

visualization panel

thickness: 12mm

tempered glass,

the front glass can be removed to facilitate the small device placed;

2 Gloves Cuff diameter 8”

Material: butyl rubber;

Brand: NORTH

1 Power outlet 220V,10A Located inside of the cabinet
1 Lighting system Lamp, ballast

Configuration fluorescent tubes

Brand: Philips

3 Standby

interface

KF40

Configuration quick connector, located in the box right

side, so that the liquid or gas can be easily and safely

in and out of the cabinet.

Material: SUS304 stainless steel

2 HEPA filters Subject to HEPA standards Filter precision 0.3μm,installed in the cabinets,filter dust.
2 Vacuum gauge Mechanical dial display Used to measure the vacuum value of the airlock..
1 Foot controller Double pedal

Control purification system to supplement and

emptying the gas in the cabinet.

1 Purge valve

Automatic electro-pneumatic valve.

Brand: BURKERT.

1 Gas purification system

Single purification

the column (GP-1)

Withwater scavenging, and oxygen scavenging function;

German BASF the deaerator materials, UOP efficient

absorbent materials,

The purification system of regeneration process

automatically control,

Long-term, continuing to maintain gas purity:

H20 & O2 ≤ 1ppm

Control system Color touch screen: 6 inch

PLC control system, touch-screen operation,

Brand: SIEMENS;

1 Vacuum pump Model: GLD-N201

Exhaust volume 4L / S,

Brand: Japan ULVAC.

1 Pressure-sensing instrument

-2500 ~ 2500Pa

(relative pressure)

Touch-screen display;

Brand: SIEMENS.

1Oxygen

Transmitter

0~1000ppm

Touch-screen display; oxygen sensor

Brand: American AII.

1 Water probe 0~1000ppm

Touch-screen display;

Brand: British MICHELL

1 Organic solvent filtration system

Quality and efficient

activated carbon

A built 21 l activated carbon, can be replaced.
1 Circulating fan High-speed frequency fan

High degree of vacuum of the circulation pump;

Brand: Taiwan DRAGANG





Back view:



Large Glove Box with Gas Purification System and Digital Control 0



Working conditions and performance indicators



Power supply 220V(AC) 50HZ
Maximum Power ≈3000W
Gas the working gas: N2, Ar, He etc.inert gas
control gas: compressed air or inert gas
Reducing gas: working gas mixed of hydrogen (H2).

Cabinets water content in the standard case

(Note: The standard case is an atmospheric pressure, a constant temperature of 20 degrees)

≤1ppm

Cabinets oxygen content in the standard case

(Note: The standard case is an atmospheric pressure, a constant temperature of 20 degrees)

≤1ppm
airlock withstand a minimum vacuum value ≥100pa
The leak rate ≤0.001Vol%/ h

Power Supply:220V(AC) 50HZ Max. Power:3000W

Remarks:Price include Purification system &Water probe &Oxygen probe &Vacuum Pump

Standard Accessories: Brand

PLC & Touch Screen: Germany SIEMENS

Water Probe: American AII

Oxygen Probe: British MICHELL

Vacuum Pump: Japan ULAVC
