Vacuum Laboratory Glove Box PLC control for Universal Testing

รายละเอียดสินค้า

Place of Origin: CHINA

ชื่อแบรนด์: SOPERSL

ได้รับการรับรอง: CE.SGS.ISO

Model Number: VGB600S

เงื่อนไขการชำระเงินและการจัดส่ง

Minimum Order Quantity: 2

ราคา: USD300-USD10000

Packaging Details: CRATE PACKAGE

Delivery Time: 5-10 WORKING DAYS FOR LCL

Payment Terms: D/P, Western Union

Supply Ability: 3000PCS/MONTH

รับราคาที่ดีที่สุด
ไฮไลต์:

กล่องถุงมือสูญญากาศ

,

กล่องถุงมือหมัน

,

SS304 กล่องถุงมืออุปกรณ์ห้องปฏิบัติการ

สี:
สีขาว ออริจินัล
วัสดุ:
SS304
พลัง:
อิเล็กทรอนิกส์
ชื่อ:
กล่องถุงมือสูญญากาศ SUS
การใช้งาน:
เครื่องทดสอบอเนกประสงค์
กล่องใส่ถุงมือ:
600 มม.(ก) x 450 มม.(ล) x 420 มม.(ส)
สี:
สีขาว ออริจินัล
วัสดุ:
SS304
พลัง:
อิเล็กทรอนิกส์
ชื่อ:
กล่องถุงมือสูญญากาศ SUS
การใช้งาน:
เครื่องทดสอบอเนกประสงค์
กล่องใส่ถุงมือ:
600 มม.(ก) x 450 มม.(ล) x 420 มม.(ส)

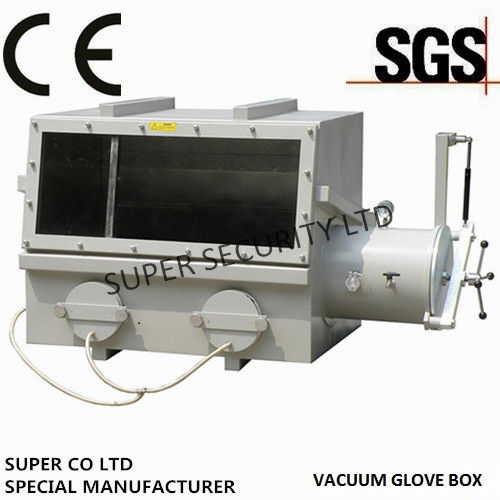

Vacuum Laboratory Glove Box PLC control for Universal Testing

Vacuum Laboratory Glove Box PLC control for Universal Testing



  • Instroduction

VGB600S is a  stainless steel glove box with Airlock Chamber, Gauges andvacuum Flanges, which allow glove box operate under vacuum to remove moisture and oxygen without expensive inert gas purging.



  • Application:

1. MOCVD technology in the semiconductor industry. vcuum glove box

2. Special lamps (HID) development and production.vacuum glove box

3. Microelectronics, laser and plasma welding.vacuum glove box

4. OLED / PLED development and production.vacuum glove box

5. The development and production of lithium-ion batteries.vacuum glove box

6. Inorganic / Organic Chemistry Research.vacuum glove box

7. Metal halide / metal powder / ceramic powder research.vacuum glove box

8. Nanotechnology research materials.vacuum glove box

9. Catalyst.





Advantages:



Siemens PLC control system  with 6" touch screen display: easy to access all functions

Recirculation system: closed loop gas circulation, oil free and vacuum tight

Automatically pressure control: working pressure can be set in the range of +/-12mbar

Automatically purging: easy to operate and save gas, as well safe for operating solvent.

Equipped with 9 3/ 4"butyl gloves for immediate use

Foot switch: box pressure can be regulated via foots witch

Easy to access to gloves

Data memo: automatically log system’s data

Warranty:One Year limited warranty with lifetime support Rusting and damage due to improper storage condition or maintenance is not covered by w arranty







Glove Box Chamber


·Case Material: Made of 11 gauge (3mm thickness) 304 stainless steel sheet   which provide heavy duty structure for vacuum

·Dimensions: 600mm(W) x 450mm(D) x 420mm(H)

·Max. Positive Pressure: 810 Torr (1.1 atm)

 Note: Gloves cannot work if pressure is higher than 810 Torr

·Max. Vacuum Level: 0.5 Torr

 Note: Stainless Steel case may deform at higher vacuum level

Air-lock Chamber

with Air lift

·Dimensions: 210mm(ID) x 260mm(D)

·Max. Vacuum Level: 0.05 Torr

Transparent Front Panel

·Dimension: 500mm(W) x 165mm(H)

·Removable for putting in devices

Leakage Rate

in Glove Box Chamber

< 3 Torr/hour

Power Extension

·One extension socket (Max power 1500W) is installed in the glove box main  chamber.

Gloves

·Glove Port size: 190mm

·Included (with increased stretching, bending ability and tear strength,

and offer strong resistance to aromatics, hydrocarbons, solvents, fats, and acids)

·Clamps and sealing flanges included

Vacuum pump

and fittings (Optional)

Vacuum pump and fittings are not included.

Application Notes

·Always check the joints, gloves, sealing elements, and pipelines for air-tightness  before and during the operation

·Corrosive gases are prohibited as they will damage the sensors

·The inlet and outlet of the Air-lock Chamber must not be opened at the same time  to prevent contamination by the external gas

·By closing the vacuum flange, the glove box can be vacuumed by mechanical  pump up to 0.5 torr before filling inert gas,  (moisture can be below 180 ppm and oxygen below 200 ppm).  Then you can save at least 1-2 tank of inert gas from purging at each operation





Vacuum Laboratory Glove Box PLC control for Universal Testing 0Vacuum Laboratory Glove Box PLC control for Universal Testing 1

Vacuum Laboratory Glove Box PLC control for Universal Testing 2



STANDARD PACKAGE:



No

Description

Qty.

1

VGB-600S SS Glove box

1 unit

2

Power cable

1 pair

3

Gloves (spare use)

2 pcs

4

Vacuum rubber hose

1 pcs

5

Sealing gasket of glove port (spare use)

3 pcs

6

Sealing gasket of glove box door (spare use)

2 pcs

7

Vacuum grease

1 box

8

Glove clamps

3 pcs

9

Hose clamps

1 pack

10

Polyurethane tube

1 pc

11

User’s manual CD

1 pc
