บ้าน > ผลิตภัณฑ์ > ตู้อบแห้งอิเล็กทรอนิกส์ > IC PCB storage dry cabinet / digital dry cabinet for emiconductor IC Packages BGA PGA,IC PCB SMT PBGA

IC PCB storage dry cabinet / digital dry cabinet for emiconductor IC Packages BGA PGA,IC PCB SMT PBGA

รายละเอียดสินค้า

สถานที่กำเนิด: R.P. of China

ชื่อแบรนด์: SOPERSL

ได้รับการรับรอง: CE.SGS

หมายเลขรุ่น: DC82403LE

เงื่อนไขการชำระเงินและการจัดส่ง

จำนวนสั่งซื้อขั้นต่ำ: 5

ราคา: USD300-1900

รายละเอียดการบรรจุ: PAPER BOX

เวลาการส่งมอบ: 10-15DAYS

เงื่อนไขการชำระเงิน: TT,LC AT SIGHT

สามารถในการผลิต: 1000PCS/MONTH

รับราคาที่ดีที่สุด
ไฮไลต์:

electronic dry cabinet

,

digital dry cabinet

matrial:
steel
color:
white
size:
1310*598*400
matrial:
steel
color:
white
size:
1310*598*400
IC PCB storage dry cabinet / digital dry cabinet for emiconductor IC Packages BGA PGA,IC PCB SMT PBGA

IC PCB storage dry cabinet / digital dry cabinet high performance



Applications:



DC82403LE is equipped with a precise LED control, which has ±3%RH precision tolerance. It is especially designed with fully automatic humidity control at <10%RH to prevent any kinds of moisture damages. This cabinet is the perfect storage for SMT/BGA/PCB/LED components. The newly innovated design greatly increases dehumidifying system runs faster and more powerful compare to those of traditional dry cabinets. Hence, it decreases the defective rate at production line at the same time.



Main Specifications of DC82403LE LED CONTROL HUMIDITY DESICCANT CABINET

DC82403LE -LED CONTROL HUMIDITY DESICCANT CABINET
240-Litre (RH:1-10%For SMT,IC,BGA,copper,siler,silver plating components)

3 Shelves (Adjustable), ,Each with 150kg loading
1 door, Manual
Ext. Sizes W×D×H(mm/in): 598×710×1310/ 23.5×28×51.6 in
Int. Sizes W×D×H(mm/in): 596×682×848mm/ 23.4×27×33.4 in
Weight: 43Kgs/ 94.6 lbs



  • Cabinet Size: 598mm(W)x710mm(D)x1310mm(H)
  • Equipment with high performance, reliable desiccators and himidity controller located at the lower deep inside.

  • Display Precision Tolerance: ±1°C, ±3%RH

  • Cabinet Structure: 1mm thickness cold steel with antistatic paint, 1.2mm cold rolled plate.

  • Doors/windows: Handles, airtight magnetic sealers and temper glass.

  • Lock: Zinc alloy lock with plus pressure capability.

  • High intensity truckle with brake, 4 antistatic 3” wheels, 2 of them with brakes.

  • Power Consumption: Ave. 20W; Max. 140W

  • ROHS certification surface powder coating

  • Standard: IPC/JEDEC J-STD-033B

Market Segments

  • SONY
  • 3M
  • SIEMENS
  • IBM
  • TOSHIBA
  • SUMSUNG
  • NIKONAND SO ON


Our Advantage

  •  High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

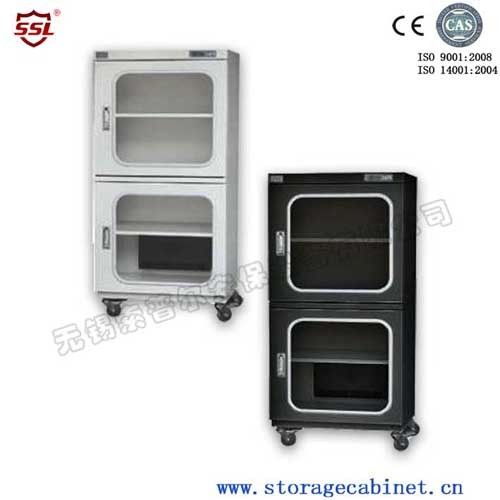

Drying Cabinet Picture  details

Digital Temp Display &  RH Control
 IC PCB storage dry cabinet / digital dry cabinet  for emiconductor IC Packages BGA PGA,IC PCB SMT PBGA 0

 US-Made Honeywell sensor



Professional dehumidifier Host

IC PCB storage dry cabinet / digital dry cabinet  for emiconductor IC Packages BGA PGA,IC PCB SMT PBGA 1 Modular Dehumidification system: Can be changed quickly,easy maintenance.


Instroduction



With over than 10 years of experiences in Humidity Control Solution, SSL desiccators is especially designed and made to comply with J-STD-033/IPC.

Not only do we focus on the performance of our products, we also incorporate Environmental Friendly design to all of our drying boxes and have helped out many reputable SMT / IT customers cutting their product defective rate to zero, and substantially saving them worth of hundred and thousands US dollars each year.



Low Humidity Drying cabinet Package
Standard Paper Box



Plastics bag-PE around-carton box OR crate box




Competitive Advantage:



Energy saving design: low electricity consumption resuegence, no heating, no condensation Dripping, absence of fan noise

Dual digital hygrometer-Ecology Design

Noisy free, vibration free, low humidity keeping at ambient temperature and long-term consecutive driving.

Energy saving design: maintenance cost is only a very little electricity. It comes with humidity controller.

No expendable supplies (Exchange free desiccant), very economical.

No use of batteries for hygrometer.

Long lasting and highly reliable.

With detachable shelves, wide space is available to use.

With high technology( photocatalyst, IC timer, shape-memory alloy and dual digital hygrometer)





Do you know Moisture damamges?

In general, most molds grow when humidity is higher than 60%RH. Dehumidifying Dry Cabinets are useful in preventing mold from growing.

However, normal dry box storage cannot prevent the particular type of mold which grows under 20%RH. To protect your cameras from the general to particular molds, SSL Dry 01 series dry cabinets are the appropriate choice. There are three levels of humidity setting dial in 01 series cabinets; "High (50%)", "Standard (40%)" and "Low (30%)". Set the dial at the standard mode (40%) for the ideal humidity level to keep your camera lens from various molds.



Best Storage Condition(%RH) for Different Material

TYPE

Best Storage  Condition(%RH)

      Moisture Sensitive Material

TYPE 01

30%-50%RH

Optical,Photographic and Media Field: Lenses, Cameras, Microscopes ,Telescopes, Binoculars, Video cameras, Video tapes, Infrared cameras, Prism for lasers, Optical measurements apparatus, Films, Microphotographs, Picture films, CD/DVD, Microphone, Musical instruments,etc

Paper Products,  Art and Medicinal Field: Printed matter, Label, Ancient documents, Cultural assets, Art, Industrial art, Excavated articles,stamp,medicinal materials,coffee,cigarette etc.

Semiconductors, Electronics Parts and Precision Instrument and Parts Field: Semiconductors, IC packages, Condensers, Resistances, PCB, Wafers, Filament, Lithium, Nickel batteries, Crystal oscillators, Gauges, Weight, Hygroscopic plastics, Metal, Non-ferrous metal, Welding rods, Metal powdery product, Ultrafine powdery alloy.

TYPE 02

30%-10%RH



Semiconductors, Electronics Parts and Precision Instrument and Parts Field: Semiconductors, IC packages, Mesuring tools,Electronic component,such as IC,BGA,etc.

TYPE 03

10%RH below



Semiconductors, Electronics Parts and Precision Instrument and Parts Field: Semiconductors, IC packages, Condensers, Resistances, PCB, Wafers, Filament, Lithium, Nickel batteries, Crystal oscillators, Gauges, Weight, Hygroscopic plastics, Metal, Non-ferrous metal, Welding rods, Metal powdery product, Ultrafine powdery alloy.
